Industrial-Grade Thermoforming Films for Food Packaging

Thermoforming films are used in vacuum-skin and modified atmosphere packaging (MAP) lines to deep-draw form the bottom web of rigid or semi-rigid packs. Our films are engineered for consistent performance on high-speed machines.

We offer two primary structures — PA/PE (low temperature) for standard applications and PA/PP (high temperature) for retort and hot-fill packaging — both available with EVOH barrier enhancement for extended shelf life.

Get Free Sample Get Technical Specs

Product Range

Our Thermoforming Film Series

🔥 Best Seller

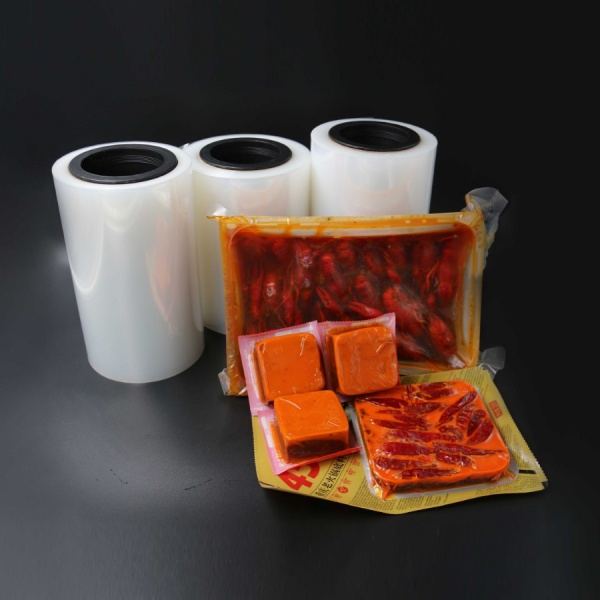

Low Temperature Thermoforming Film

PA/PE Structure — Standard Vacuum & MAP Packaging

Excellent oxygen & moisture barrier performance
Deep-draw capability (draw ratio up to 1:1.5)
Suitable for low-temperature sealing lines
Compatible with Multivac, ULMA, Henkelman, Supervac
Optional EVOH core for premium barrier
Customizable thickness: 60–200 μm
Width: up to 600 mm
Transparent or matte finish available

Technical Specifications

Parameter	Specification
Structure	PA / PE (or PA / EVOH / PE)
Thickness	60 – 200 μm (custom)
Width	Up to 600 mm
Sealing Temp	120°C – 160°C
O₂ Transmission	≤ 20 cm³/m²/day (EVOH: ≤ 3)
Application	Meat, seafood, cheese, deli
Stretch Ratio	Up to 1:1.5 draw depth

Request Sample Ask for Machine Solution 💬 WhatsApp

HIGH TEMP

High Temperature Thermoforming Film

PA/PP Structure — Retort, Hot-Fill & High-Speed Lines

Withstands retort temperatures up to 135°C
Excellent hot-fill performance
Superior stiffness for rigid-look packaging
High puncture and tear resistance
EVOH barrier option available
Suitable for high-speed automated lines
Ideal for cooked meats, ready meals, soups

Technical Specifications

Parameter	Specification
Structure	PA / PP (or PA / EVOH / PP)
Thickness	80 – 250 μm (custom)
Width	Up to 600 mm
Sealing Temp	160°C – 200°C
Retort Temp	Up to 135°C
O₂ Transmission	≤ 15 cm³/m²/day (EVOH: ≤ 2)
Application	Cooked meats, ready meals, retort pouches

Request Sample Get Custom Quote 💬 WhatsApp

Machine Compatibility

Works With Your Packaging Line

Our thermoforming films are tested and optimized for leading packaging machine brands worldwide.

MULTIVAC

Multivac

R105, R245, R535 and all R-series thermoformers

ULMA

TF series vacuum thermoforming machines

HENKELMAN

Henkelman

Industrial chamber and belt machines

OTHER

All Brands

Supervac, Orved, Minipack, Ross and custom lines

We also provide thermoforming machine solutions with film orders — learn about our Film + Machine bundle →

FAQ

Frequently Asked Questions

What is the difference between PA/PE and PA/PP thermoforming film?+

PA/PE (polyamide/polyethylene) is suitable for low-temperature sealing applications such as fresh meat, seafood, and cheese, with a sealing temperature range of 120–160°C. PA/PP (polyamide/polypropylene) is designed for high-temperature applications including retort packaging and hot-fill products, withstanding up to 135°C processing temperatures.

Can you add EVOH barrier to the film?+

Yes. We offer EVOH (ethylene vinyl alcohol) as an inner barrier layer in both PA/PE and PA/PP structures. EVOH significantly reduces oxygen transmission (≤ 2–3 cm³/m²/day vs ≤ 15–20 without), extending shelf life for oxygen-sensitive products like fresh meat and processed cheese.

What is the minimum order quantity (MOQ)?+

MOQ is typically 500 kg per specification. For custom widths, thicknesses, or printed films, MOQ may be higher. Please contact us with your specific requirements for a detailed quotation.

How do I know which film fits my machine?+

Please provide your machine brand and model, current film specification (if any), product type and weight, and required shelf life. Our technical team will recommend the optimal film structure and confirm compatibility before sampling.

How long does sampling take?+

Standard samples are dispatched within 5–7 business days. Custom structures may require 10–15 days. We recommend requesting samples early to allow time for testing on your production line.
